GEAR HEAD(GGM) - K8G

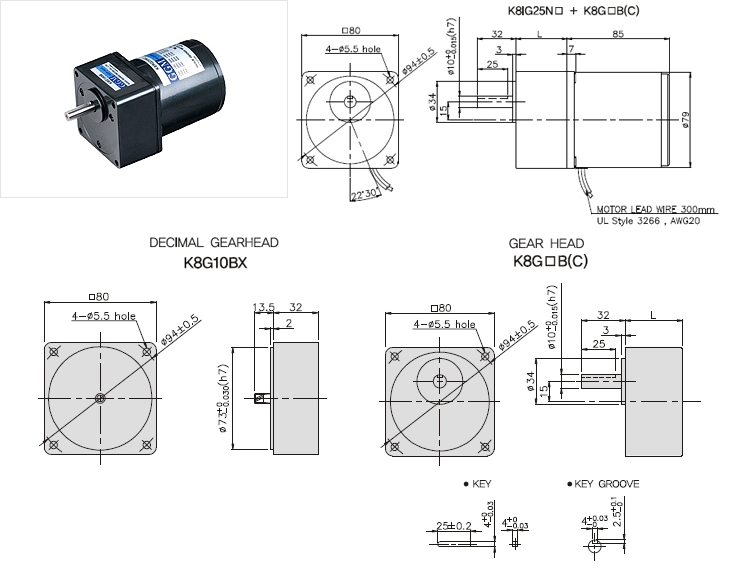

DIMENSIONS
SPECIFICATIONS
Ä¡¼öµµÇ¥
|
¹«°Ô
|
||||||||||||||||||||||||||||||||
RATED TORQUE OF GEARHEAD
50Hz
´ÜÀ§ = »ó´Ü: N¡¤m / ÇÏ´Ü : kgf¡¤cm
| MODEL | SPEED (rpm) |
500 | 416 | 300 | 250 | 200 | 166 | 150 | 120 | 100 | 83 | 75 | 60 | 50 | 41 | 37 | 30 | 25 | 20 | 16 | 15 | 12.5 | 10 | 8.3 | 7.5 | 6 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MOTOR / GEARHEAD |
Ratio | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 10 | 12.5 | 15 | 18 | 20 | 25 | 30 | 36 | 40 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 200 | 250 |
| K8IG25N¡à K8G¡àB(C) |
0.45 | 0.54 | 0.75 | 0.9 | 1.12 | 1.35 | 1.5 | 1.87 | 2.25 | 2.7 | 2.7 | 3.37 | 4.05 | 4.86 | 5.39 | 6.07 | 7.28 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | |
| 4.5 | 5.4 | 7.5 | 9 | 11.2 | 13.5 | 15 | 18.7 | 22.5 | 27 | 27 | 33.7 | 40.5 | 48.6 | 53.9 | 60.7 | 72.8 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | ||
60Hz
´ÜÀ§ = »ó´Ü: N¡¤m / ÇÏ´Ü : kgf¡¤cm
| MODEL | SPEED (rpm) |
600 | 500 | 360 | 300 | 240 | 200 | 180 | 144 | 120 | 100 | 90 | 72 | 60 | 50 | 45 | 36 | 30 | 24 | 20 | 18 | 15 | 12 | 10 | 9 | 7.2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MOTOR / GEARHEAD |
Ratio | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 10 | 12.5 | 15 | 18 | 20 | 25 | 30 | 36 | 40 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 200 | 250 |
| K8IG25N¡à K8G¡àB(C) |
0.38 | 0.45 | 0.63 | 0.75 | 0.94 | 1.13 | 1.26 | 1.57 | 1.88 | 2.26 | 2.26 | 2.82 | 3.39 | 4.07 | 4.52 | 5.08 | 6.1 | 7.63 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | |
| 3.8 | 4.5 | 6.3 | 7.5 | 9.4 | 11.3 | 12.6 | 15.7 | 18.8 | 22.6 | 22.6 | 28.2 | 33.9 | 40.7 | 45.2 | 50.8 | 61 | 76.3 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | ||
- GEARHEAD¡¤DECIMAL GEARHEAD´Â º°¸ÅÀÔ´Ï´Ù.
- GEARHEADÀÇ Ç°¸íÁß ¡à¿¡´Â °¨¼Óºñ°¡ µé¾î°©´Ï´Ù.
- ¡á »öÀÌ MOTOR¿Í °°Àº ¹æÇâ, ±×¿Ü¿¡´Â ¹Ý´ë ¹æÇâÀÔ´Ï´Ù.
- Ç¥ÀÇ °¨¼Óºñº¸´Ù ´õ °¨¼ÓÇÏ°íÀÚ ÇÒ °æ¿ì´Â GEARHEAD¿Í MOTOR »çÀÌ¿¡ °¨¼Óºñ 10ÀÇ DECIMAL GEARHEAD¸¦ ¼³Ä¡ÇÒ ¼ö ÀÖ½À´Ï´Ù. ÀÌ °æ¿ìÀÇ Çã¿ë TORQUED´Â 8 N¡¤m / 80 kgf¡¤cm ÀÔ´Ï´Ù.
- ȸÀü¼ö´Â MOTORÀÇ µ¿±â ȸÀü¼ö (50Hz : 1500rpm, 60Hz : 1800rpm)¸¦ ±âÁØÀ¸·Î ÇÏ¿© °¨¼Óºñ·Î ³ª¿ì¾î¼ °è»êÇÏ¿´½À´Ï´Ù. ½ÇÁ¦ÀÇ È¸Àü¼ö´Â ºÎÇÏÀÇ Å©±â¿¡ µû¶ó¼ Ç¥½ÃµÈ ¼öÄ¡º¸´Ù 2~20% Àû½À´Ï´Ù.
